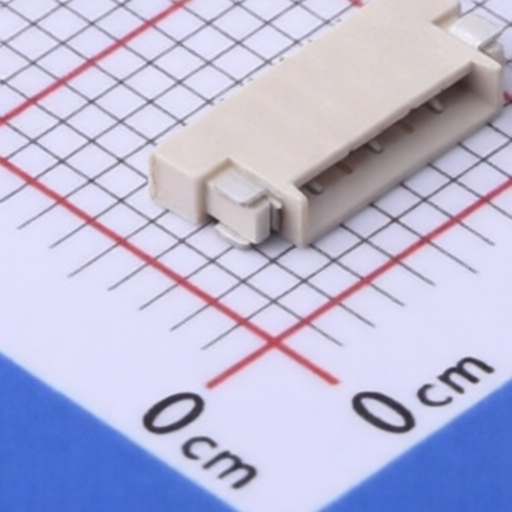

TXGA FFC10022-05SBD224W5M
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FFC10022-05SBD224W5M
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 5POS 1mm TOP AND BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 5 Position 1mm Pitch Double-Sided Contacts, Top and Bottom Entry Surface Mount, Right Angle -25℃~+85℃
Datasheet:
TXGA FFC10022-05SBD224W5M
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Operating Temperature:
-25℃~+85℃
Locking Feature:
Non-Latching
Number of Contacts:
5P
Pitch:
1mm
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
