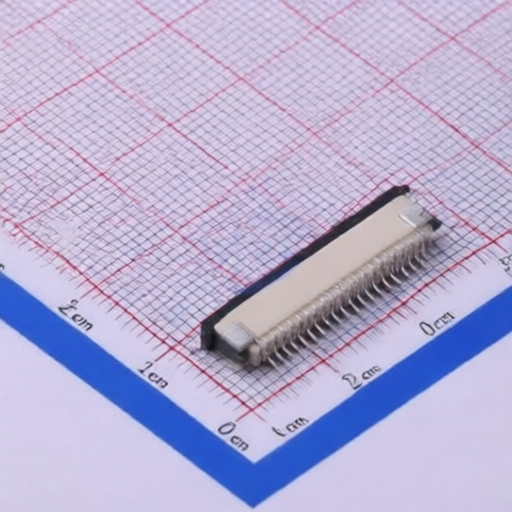

TXGA FFC10001-20SBB124W5M
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FFC10001-20SBB124W5M
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 20POS 1mm BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 20 Position 1mm Pitch Bottom Contact Surface Mount, Right Angle
Datasheet:
TXGA FFC10001-20SBB124W5M
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Operating Temperature:
-25℃~+85℃
Locking Feature:
Slide Lock
Number of Contacts:
20P
Pitch:
1mm
Current Rating:
500mA
Voltage Rating (Max):
50V
Contact Type:
Bottom Contact
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Plating:
Tin
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
