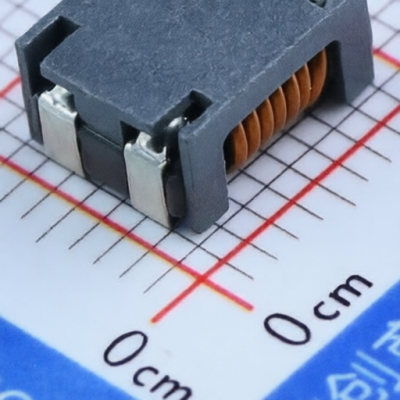

TDK ACM90V-701-2PL-TL00

TDK ACM90V-701-2PL-TL00

Name: TDK ACM90V-701-2PL-TL00
Brand: TDK

Manufacturer: TDK

Mfr. Part #: ACM90V-701-2PL-TL00

Package: SMD-4P,9x7mm

Customer #:

Key Attributes: CMC 5A 2LN 700Ω SMD

Description: 2Line Common Mode Choke Surface Mount 700Ω@100MHz 5A DCR 10mΩ

Products Specifications

Category:

Passives/Filters/Common Mode Chokes

Manufacturer:

TDK

Package:

SMD-4P,9x7mm

Impedance @ Frequency:

700Ω@100MHz

Insulation Resistance(IR):

10MΩ

Voltage Rating - DC:

80V

Number of Lines:

DC Resistance(DCR):

10mΩ

Current Rating:

Operating Temperature:

-40℃~+125℃

Voltage Withstand:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	800
Sales Unit	Piece
