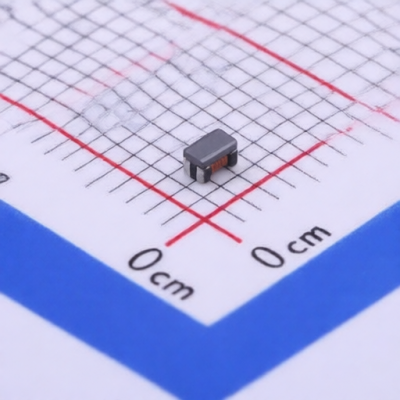

TDK ACM2012-361-2P-T001
Manufacturer:
TDK
Mfr. Part #:
ACM2012-361-2P-T001
Package:
SMD-4P,2x1.2mm
Customer #:
Key Attributes:
CMC 220mA 2LN 360Ω SMD
Description:
2Line Common Mode Choke Surface Mount-4P 2x1.2mm 360Ω@100MHz 220mA DCR 500mΩ
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,2x1.2mm
Impedance @ Frequency:
360Ω@100MHz
Voltage Rating - DC:
50V
Number of Lines:
2
DC Resistance(DCR):
500mΩ
Operating Temperature:
-40℃~+105℃
Current Rating:
220mA
Voltage Withstand:
50V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
