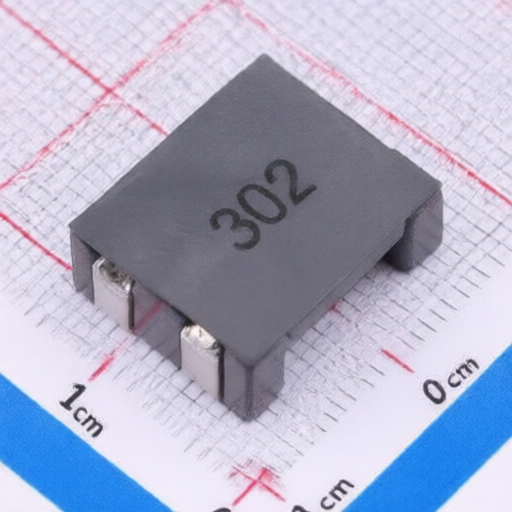

Sunltech SMW1513S302PTT

Sunltech SMW1513S302PTT

Name: Sunltech SMW1513S302PTT
Brand: Sunltech

Manufacturer: Sunltech

Mfr. Part #: SMW1513S302PTT

Package: SMD-4P,15x13mm

Customer #:

Key Attributes: CMC 20uH 5A 3kΩ SMD

Description: 20uH@100kHz Common Mode Choke Surface Mount-4P 15x13mm 3kΩ@100MHz 5A DCR 18mΩ

Datasheet: Sunltech SMW1513S302PTT

Products Specifications

Category:

Passives/Filters/Common Mode Chokes

Manufacturer:

Sunltech

Package:

SMD-4P,15x13mm

Inductance @ Frequency:

20uH@100kHz

Impedance @ Frequency:

2.5kΩ@100MHz;3kΩ@100MHz

Voltage Rating - DC:

80V

DC Resistance(DCR):

18mΩ

Operating Temperature:

-40℃~+125℃

Current Rating:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	500
Sales Unit	Piece
