Sunltech SMW1513S101ZTT

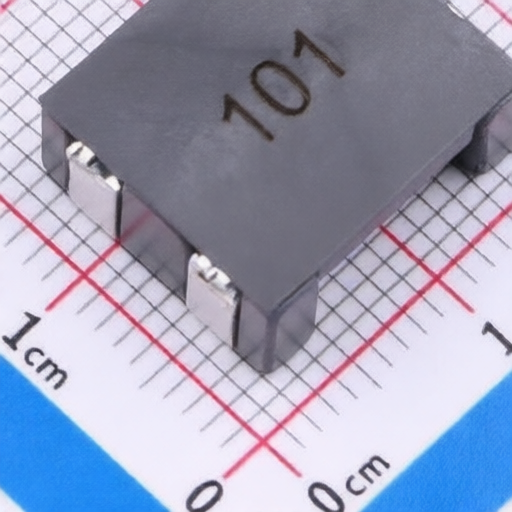

Sunltech SMW1513S101ZTT

Name: Sunltech SMW1513S101ZTT
Brand: Sunltech

Manufacturer: Sunltech

Mfr. Part #: SMW1513S101ZTT

Package: SMD-4P,15x13mm

Customer #:

Key Attributes: CMC 500nH 20A 60Ω SMD

Description: 500nH@100kHz Common Mode Choke Surface Mount-4P 15x13mm 60Ω@100MHz 20A DCR 2mΩ

Datasheet: Sunltech SMW1513S101ZTT

Products Specifications

Category:

Passives/Filters/Common Mode Chokes

Manufacturer:

Sunltech

Package:

SMD-4P,15x13mm

Inductance @ Frequency:

500nH@100kHz

Impedance @ Frequency:

60Ω@100MHz;100Ω@100MHz

Insulation Resistance(IR):

10mΩ

DC Resistance(DCR):

2mΩ

Operating Temperature:

-40℃~+125℃

Current Rating:

20A

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	500
Sales Unit	Piece
