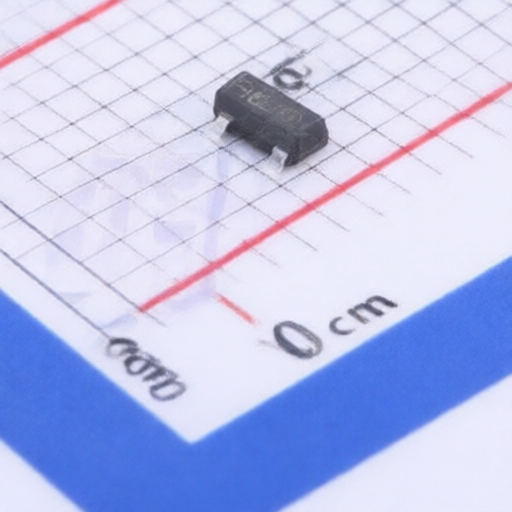

STANSON Tech. ST2302
Manufacturer:
STANSON Tech.
Asian Brands
Mfr. Part #:
ST2302
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 3.6A SOT-23
Description:
N-Channel 20V 3.6A 1.25W Surface Mount SOT-23
Datasheet:
STANSON Tech. ST2302
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
3.6A
Operating Temperature -:
-55℃~+150℃
RDS(on):
70mΩ@4.5V;95mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
33pF
Number:
1 N-channel
Output Capacitance(Coss):
115pF
Input Capacitance(Ciss):
340pF
Pd - Power Dissipation:
1.25W
Gate Charge(Qg):
5.4nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
STANSON Tech.
67 Products
After 20 years of semiconductor equipment sales and semiconductor device manufacturing, design and sales, Stanson's scale has gradually grown, stabilized, and grown.
