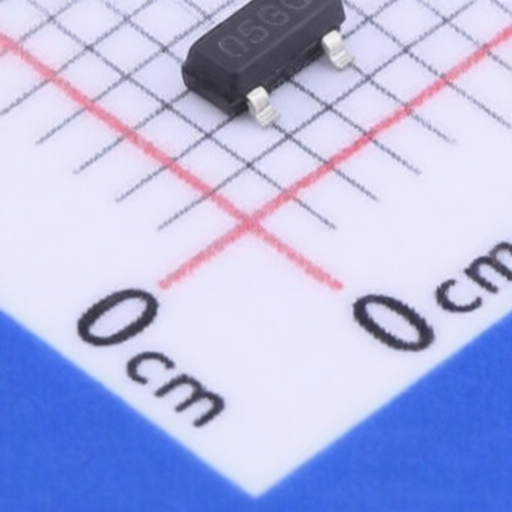

STANSON Tech. ST2305
Manufacturer:
STANSON Tech.
Asian Brands
Mfr. Part #:
ST2305
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 3.5A SOT-23
Description:
P-Channel 20V 3.5A 1.25W Surface Mount SOT-23
Datasheet:
STANSON Tech. ST2305
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
3.5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
63mΩ@4.5V;80mΩ@2.5V;100mΩ@1.8V
Gate Threshold Voltage (Vgs(th)):
1.5V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
40pF
Number:
1 P-Channel
Output Capacitance(Coss):
90pF
Input Capacitance(Ciss):
485pF
Pd - Power Dissipation:
1.25W
Gate Charge(Qg):
10nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
