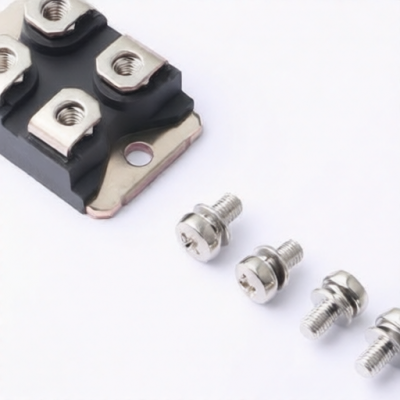

ST STGE200NB60S
Manufacturer:
ST
Mfr. Part #:
STGE200NB60S
Package:
ISOTOP-4
Customer #:
Description:
600W 600V ISOTOP-4 Single IGBTs RoHS
Products Specifications
Manufacturer:
Package:
ISOTOP-4
Td(off):
2.4us
Pd - Power Dissipation:
600W
Td(on):
64ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
95pF
Input Capacitance(Cies):
1.56nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3V@250uA
Gate Charge(Qg):
560nC@15V
Output Capacitance(Coes):
1100pF
Switching Energy(Eoff):
59mJ
Turn-On Energy (Eon):
11.7mJ
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
