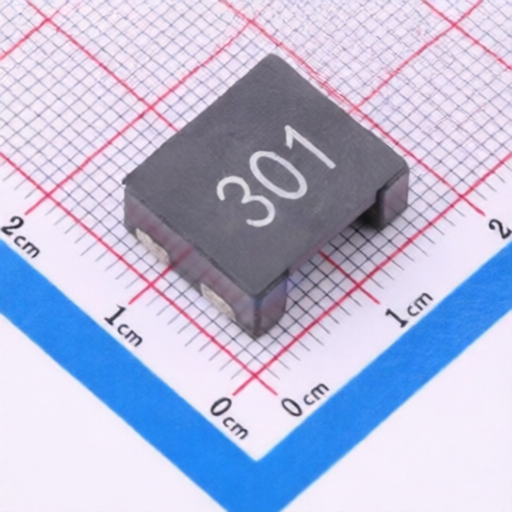

Ruishen RSCM1513-301
Manufacturer:
Ruishen
Asian Brands
Mfr. Part #:
RSCM1513-301
Package:
SMD-4P,15x13mm
Customer #:
Key Attributes:
CMC 13A 2LN 300Ω SMD
Description:
2Line Common Mode Choke Surface Mount-4P 15x13mm 300Ω@100MHz 13A DCR 5mΩ
Datasheet:
Ruishen RSCM1513-301
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,15x13mm
Inductance @ Frequency:
-
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
5mΩ
Voltage Rating (AC):
-
Voltage Rating - DC:
-
Number of Lines:
2
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 450 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Ruishen
143 Products
Ruishen, established a decade ago in Shenzhen, specializes in the production and processing of high-power inductors. Its main product lines include high-power inductors, high-current inductors, flat coil inductors, and planar transformers.
