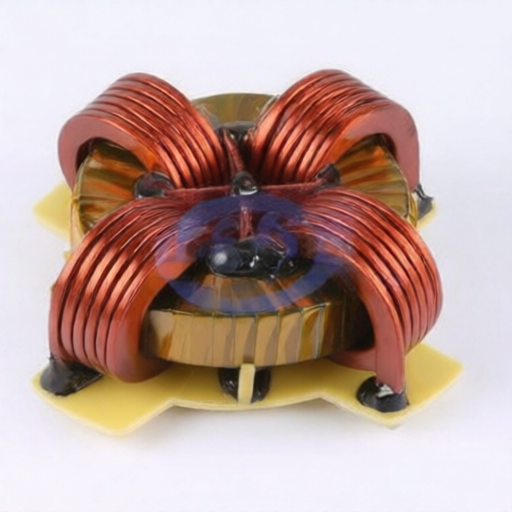

Ruishen RSCM12550-3mH-4P
Manufacturer:
Ruishen
Asian Brands
Mfr. Part #:
RSCM12550-3mH-4P
Package:
Through Hole,125x125mm
Customer #:
Key Attributes:
CMC 3mH 4LN TH
Description:
3mH@1KHz 4Line Common Mode Choke Through Hole 125x125mm DCR 0.8mΩ
Datasheet:
Ruishen RSCM12550-3mH-4P
Products Specifications
Category:
Manufacturer:
Package:
Through Hole,125x125mm
Inductance @ Frequency:
3mH@1KHz
Operating Temperature:
-25℃~+125℃
DC Resistance(DCR):
0.8mΩ
Voltage Rating - DC:
-
Number of Lines:
4
Voltage Withstand:
2.5kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 12 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Ruishen
143 Products
Ruishen, established a decade ago in Shenzhen, specializes in the production and processing of high-power inductors. Its main product lines include high-power inductors, high-current inductors, flat coil inductors, and planar transformers.
