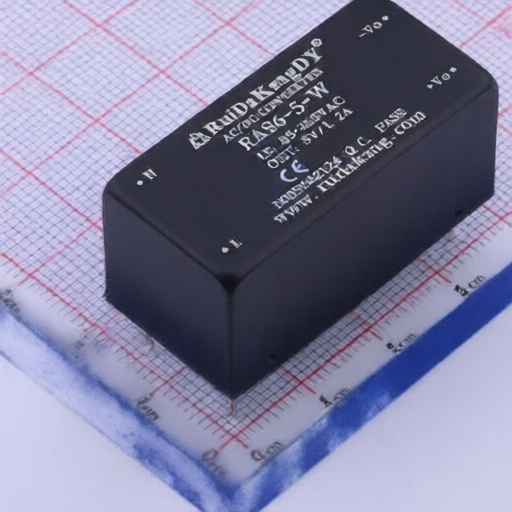

ruidakangDY RAS6-5-W
Manufacturer:
ruidakangDY
Asian Brands
Mfr. Part #:
RAS6-5-W
Package:
DIP,38x18mm
Customer #:
Key Attributes:
3-6W AC-DC Isolated Power Module
Description:
AC DC Converters 1 Output 5.05V 1.2A 85~265 VAC input
Datasheet:
ruidakangDY RAS6-5-W
Products Specifications
Manufacturer:
Package:
DIP,38x18mm
Ripple Noise:
50mVp-p
output voltage:
5.05V
Isolation Voltage(Vrms):
2.5kV
Output Power:
6W
Voltage - Input(DC):
85VAC~265VAC
Output Voltage Accuracy:
±1%
Switching Frequency:
60kHz
Output current (maximum value):
1.2A
Number of Outputs:
1
Capacitive Load(Max):
1000uF
Conversion Efficiency:
76%
Conversion Type:
AC-DC
Features:
Over Current Protection;Short Circuit Protection;Over Voltage Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8504902000 |
| USHTS | 8504909690 |
| TARIC | 8504909000 |
| CAHTS | 8504909090 |
| BRHTS | 85049020 |
| INHTS | 85049090 |
| MXHTS | 8504.90.99 |
