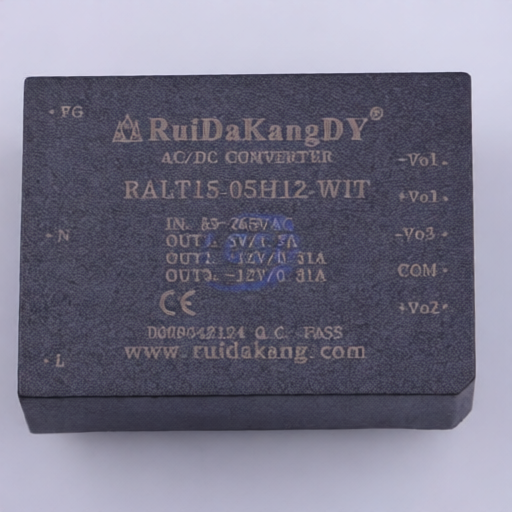

ruidakangDY RALT15-05H12-WIT
Manufacturer:
ruidakangDY
Asian Brands
Mfr. Part #:
RALT15-05H12-WIT
Package:
DIP,62x45mm
Customer #:
Key Attributes:
High Reliability, High Efficiency, High Power Density 10-25W AC-DC Power Supply
Description:
AC DC Converters 3 Output 5.05V ±12V 1.6A 0.5A 85~265 VAC input
Datasheet:
ruidakangDY RALT15-05H12-WIT
Products Specifications
Manufacturer:
Package:
DIP,62x45mm
Quiescent Dissipation:
-
Height:
-
Ripple Noise:
50mVp-p;80mVp-p
output voltage:
5.05V;±12V
Output Power:
15W
Isolation Voltage(Vrms):
2.5kV
Voltage - Input(DC):
85VAC~265VAC;-
Switching Frequency:
60kHz
Output current (maximum value):
1.6A;500mA
Capacitive Load(Max):
-
Length:
-
Width:
-
Output Voltage Accuracy:
-
Number of Outputs:
3
Conversion Efficiency:
76%
Conversion Type:
AC-DC
Features:
Over Current Protection;Short Circuit Protection;Over Voltage Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 12 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8504902000 |
| USHTS | 8504909690 |
| TARIC | 8504909000 |
| CAHTS | 8504909090 |
| BRHTS | 85049020 |
| INHTS | 85049090 |
| MXHTS | 8504.90.99 |
