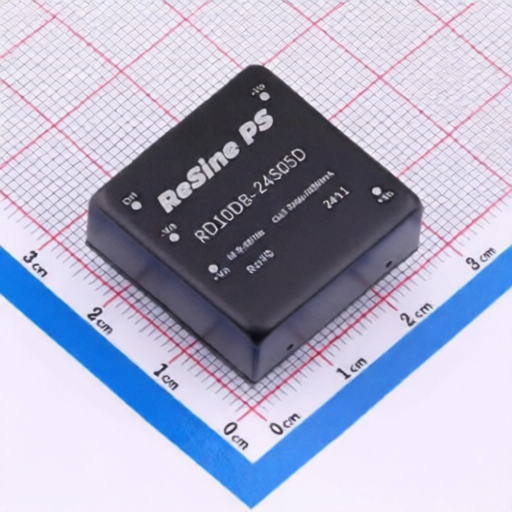

ReSine PS RD10DB-24S05D
Manufacturer:
ReSine PS
Asian Brands
Mfr. Part #:
RD10DB-24S05D
Package:
DIP,25.4x25.4mm
Customer #:
Key Attributes:
10W wide-voltage input isolated regulated output module
Description:
Isolated Module DC DC Converter 1 Output 5V 2000mA 9V~36V Input
Datasheet:
ReSine PS RD10DB-24S05D
Products Specifications
Manufacturer:
Package:
DIP,25.4x25.4mm
Height:
11.7mm
Vin:
9V~36V
Vout:
5V
Operating Temperature:
-40℃~+85℃
Capacitive Load(Max):
2200uF
Number of Outputs:
1
Ripple:
40mVp-p
Length:
25.4mm
Iout:
2A
Width:
25.4mm
Frequency - Switching:
350kHz
Quiescent Supply Current:
5mA
Isolation Voltage(Vrms):
1.5kV
Conversion Efficiency:
81%
Output Power:
10W
Features:
Short Circuit Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 10 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
