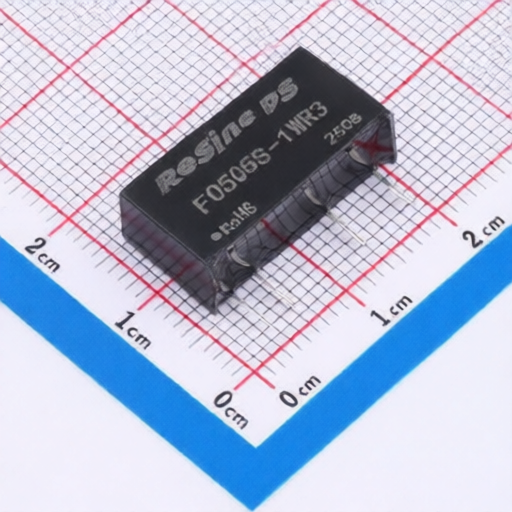

ReSine PS F0505S-1WR3
Manufacturer:
ReSine PS
Asian Brands
Mfr. Part #:
F0505S-1WR3
Package:
SIP,19.7x6mm
Customer #:
Key Attributes:
1W Isolated Non-Regulated Single/Dual Output Power Module with Fixed Voltage Input
Description:
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V~5.5V Input
Datasheet:
ReSine PS F0505S-1WR3
Products Specifications
Manufacturer:
Package:
SIP,19.7x6mm
Height:
10.16mm
Vin:
4.5V~5.5V
Vout:
5V
Operating Temperature:
-40℃~+105℃
Capacitive Load(Max):
2400uF
Number of Outputs:
1
Ripple:
30mVp-p
Iout:
200mA
Length:
19.65mm
Width:
6mm
Frequency - Switching:
270kHz
Quiescent Supply Current:
8mA
Isolation Voltage(Vrms):
3kV
Conversion Efficiency:
80%
Output Power:
1W
Features:
Short Circuit Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
