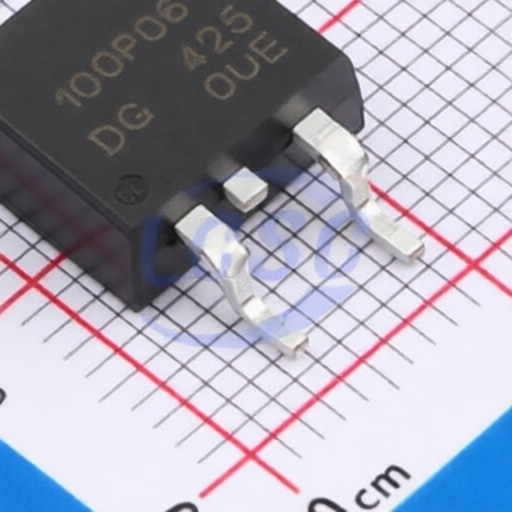

RENESAS NP100P06PDG-E1-AY
Manufacturer:
RENESAS
Mfr. Part #:
NP100P06PDG-E1-AY
Package:
TO-263
Customer #:
Key Attributes:
MOSFET P-CH 60V 100A TO-263
Description:
P-Channel 60V 100A 200W Surface Mount TO-263
Datasheet:
RENESAS NP100P06PDG-E1-AY
Products Specifications
Manufacturer:
Package:
TO-263
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
100A
RDS(on):
7.8mΩ@4.5V
Operating Temperature -:
-55℃~+175℃
Gate Threshold Voltage (Vgs(th)):
2.5V@1mA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
840pF
Number:
1 P-Channel
Pd - Power Dissipation:
200W
Input Capacitance(Ciss):
15nF@10V
Gate Charge(Qg):
300nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
