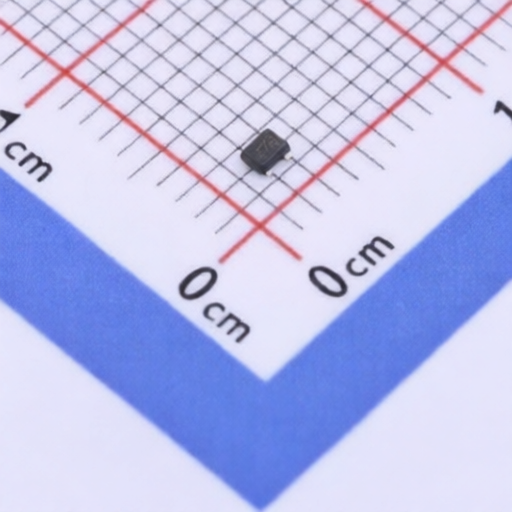

PANJIT 2N7002KTB-R1-00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
2N7002KTB-R1-00001
Package:
SOT-523
Customer #:
Key Attributes:
MOSFET N-CH 60V 115mA SOT-523
Description:
N-Channel 60V 115mA 200mW Surface Mount SOT-523
Datasheet:
PANJIT 2N7002KTB-R1-00001
Products Specifications
Manufacturer:
Package:
SOT-523
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
115mA
RDS(on):
4Ω@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
5pF
Number:
1 N-channel
Output Capacitance(Coss):
10pF
Pd - Power Dissipation:
200mW
Input Capacitance(Ciss):
35pF
Gate Charge(Qg):
800pC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
