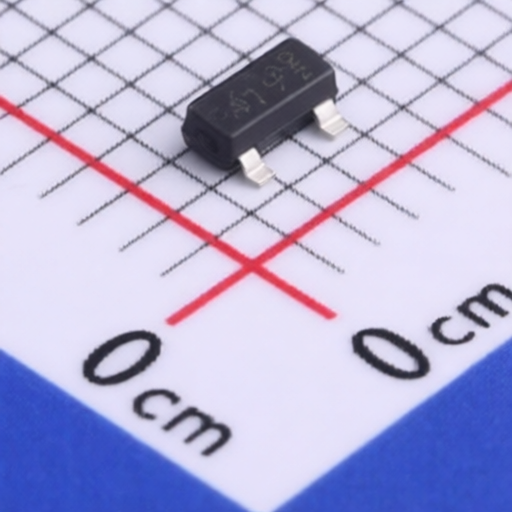

PANJIT PJA3419
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJA3419
Package:
SOT-23
Customer #:
Key Attributes:
P-Channel Enhancement Mode MOSFET - ESD Protected
Description:
20V 4A 50mΩ@10V 770mV@250uA 1 P-Channel 1.25W SOT-23 Single FETs, MOSFETs RoHS
Datasheet:
PANJIT PJA3419
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
4A
Operating Temperature -:
-55℃~+150℃
RDS(on):
50mΩ@10V
Gate Threshold Voltage (Vgs(th)):
770mV@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
47pF
Number:
1 P-Channel
Output Capacitance(Coss):
70pF
Input Capacitance(Ciss):
602pF
Pd - Power Dissipation:
1.25W
Gate Charge(Qg):
6.9nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
