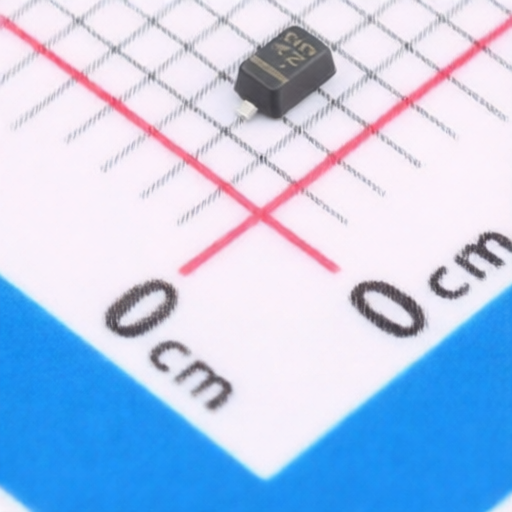

PANJIT 1N4148WS-AU_R1_000A1
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
1N4148WS-AU_R1_000A1
Package:
SOD-323
Customer #:
Key Attributes:
DIODE GP 75V 200mA SOD-323
Description:
Diode 75V 200mA Surface Mount SOD-323
Datasheet:
PANJIT 1N4148WS-AU_R1_000A1
Products Specifications
Manufacturer:
Package:
SOD-323
Non-Repetitive Peak Forward Surge Current:
4A
Reverse Leakage Current (Ir):
2.5uA@75V
Reverse Recovery Time (trr):
4ns
Operating Junction Temperature Range:
-55℃~+150℃
Voltage - DC Reverse (Vr) (Max):
75V
Pd - Power Dissipation:
250mW
Voltage - Forward(Vf@If):
1.25V@150mA
Current - Rectified:
200mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
PANJIT
1418 Products
Innovation, Development, Responsibility, Sustainability
PANJIT is a public company founded in May 1986. We are a discrete manufacturer, a member of Electronic Industry Citizenship Coalition (EICC), and have ISO/TS-16949, ISO-9001, OHSAS-18001 certifications.
PANJIT is vertical integrated. We self-design and produce the wafer and manufacture our products. With insight observation and core technologies, PANJIT is able to continuously launch low profile products and accurate power rating devices which conforms to the customer needs.
PANJIT commits to serve customers with the best service, thus we have established sales offices worldwide. We have sites in North America, Germany, Korea and China which allows us to provide better and prompt service.
