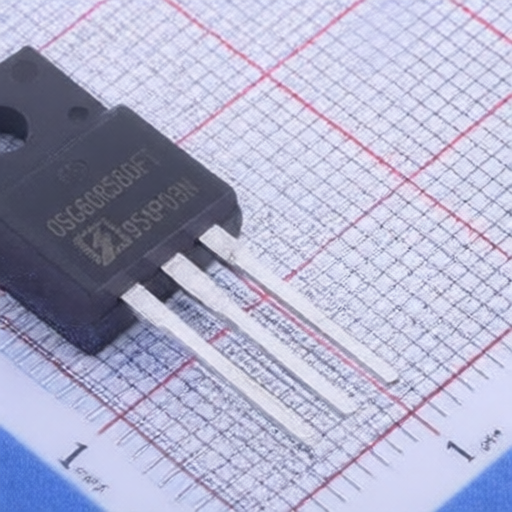

ORIENTAL SEMI OSG60R580FTF
Manufacturer:
ORIENTAL SEMI
Asian Brands
Mfr. Part #:
OSG60R580FTF
Package:
TO-220F-3
Customer #:
Key Attributes:
Enhancement Mode N-Channel Power MOSFET, Current: 8A, Voltage: 600V
Description:
600V 8A 580mΩ@10V 3.9V@250uA 26W TO-220F-3 Single FETs, MOSFETs RoHS
Datasheet:
ORIENTAL SEMI OSG60R580FTF
Products Specifications
Manufacturer:
Package:
TO-220F-3
Drain to Source Voltage:
600V
Current - Continuous Drain(Id):
8A
Operating Temperature -:
-55℃~+150℃
RDS(on):
580mΩ@10V
Gate Threshold Voltage (Vgs(th)):
3.9V@250uA
Reverse Transfer Capacitance (Crss@Vds):
3.1pF
Number:
-
Output Capacitance(Coss):
41.7pF
Input Capacitance(Ciss):
410.8pF
Pd - Power Dissipation:
26W
Gate Charge(Qg):
8.7nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
