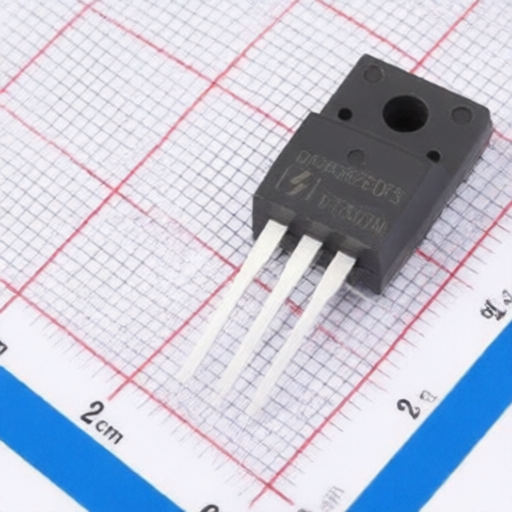

ORIENTAL SEMI OSG65R260FSF
Manufacturer:
ORIENTAL SEMI
Asian Brands
Mfr. Part #:
OSG65R260FSF
Package:
TO-220F
Customer #:
Key Attributes:
MOSFET 700V 15A TO-220F
Description:
700V 15A 220mΩ@10V 3.9V 33W TO-220F Single FETs, MOSFETs RoHS
Datasheet:
ORIENTAL SEMI OSG65R260FSF
Products Specifications
Manufacturer:
Package:
TO-220F
Drain to Source Voltage:
700V
Current - Continuous Drain(Id):
15A
RDS(on):
220mΩ@10V
Gate Threshold Voltage (Vgs(th)):
3.9V
Reverse Transfer Capacitance (Crss@Vds):
7.1pF
Output Capacitance(Coss):
100.2pF
Input Capacitance(Ciss):
1.227nF
Pd - Power Dissipation:
33W
Gate Charge(Qg):
26.4nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ORIENTAL SEMI
59 Products
Oriental Semiconductor was established in 2008 with a registered capital of 47,582,182 million yuan. It is a technology-driven semiconductor technology company. It has deep technology accumulation in the field of semiconductor core technology devices, focusing on semiconductor device technology innovation, and has a number of semiconductor device cores patent.
