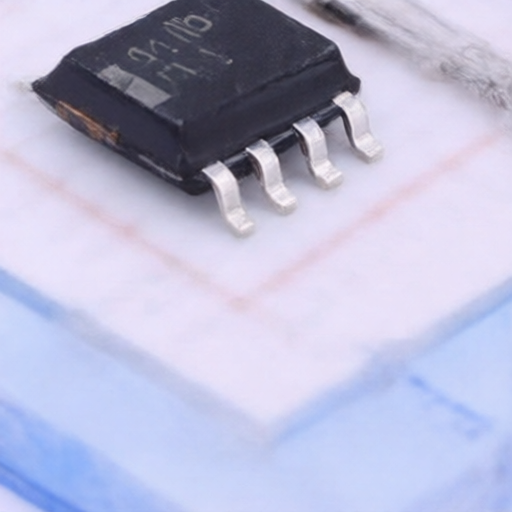

onsemi NCP1393BDR2G
Manufacturer:
onsemi
Mfr. Part #:
NCP1393BDR2G
Package:
SOIC-8
Customer #:
Key Attributes:
High-Voltage Half-Bridge Driver with Inbuilt Oscillator
Description:
Half-Bridge MOSFET 500mA 1A SOIC-8 Full Half-Bridge (H Bridge) Drivers RoHS
Datasheet:
onsemi NCP1393BDR2G
Products Specifications
Manufacturer:
Package:
SOIC-8
Operating Temperature:
-40℃~+125℃
Features:
Under Voltage Protection;Over Voltage Protection;Over Temperature Protection
Driven Configuration:
Half-Bridge
Load Type:
MOSFET
Current - Output High(IOH):
500mA
Input Voltage:
8V~16V
Current - Output Low(IOL):
1A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
