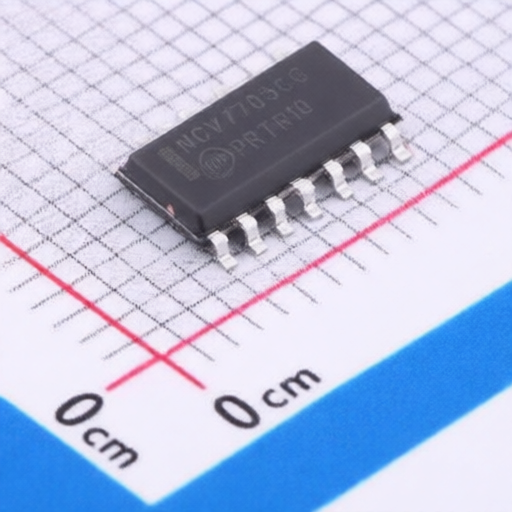

onsemi NCV7703CD2R2G
Manufacturer:
onsemi
Mfr. Part #:
NCV7703CD2R2G
Package:
SOIC-14
Customer #:
Key Attributes:
Triple Half-Bridge Driver with SPI Control
Description:
Half-Bridge 500mA 1.8A SOIC-14 Full Half-Bridge (H Bridge) Drivers RoHS
Datasheet:
onsemi NCV7703CD2R2G
Products Specifications
Manufacturer:
Package:
SOIC-14
Operating Temperature:
-40℃~+150℃
Features:
Under Voltage Protection;Over Voltage Protection;Over Current Protection;Over Temperature Protection;Short Circuit Protection
Driven Configuration:
Half-Bridge
Quiescent Current:
2.5uA
Load Type:
-
Current - Output High(IOH):
500mA
Input Voltage:
5.5V~40V
Current - Output Low(IOL):
1.8A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
