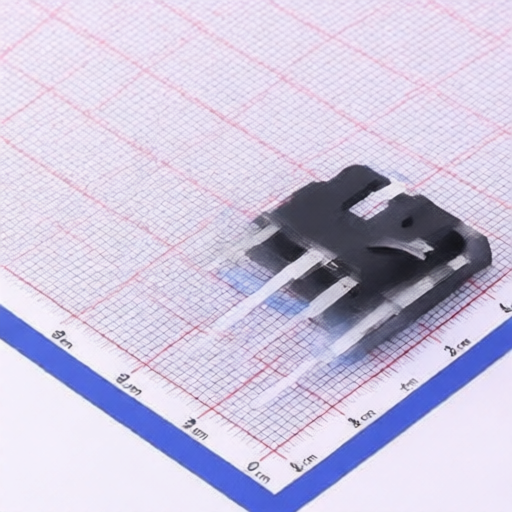

onsemi NGTB40N120L3WG
Manufacturer:
onsemi
Mfr. Part #:
NGTB40N120L3WG
Package:
TO-247-3
Customer #:
Description:
454W 1.2kV FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
onsemi NGTB40N120L3WG
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
150ns
Pd - Power Dissipation:
454W
Td(on):
18ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Operating Temperature:
-
Gate Charge(Qg):
220nC
Reverse Recovery Time(trr):
86ns
Switching Energy(Eoff):
1.5mJ
Turn-On Energy (Eon):
1.5mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
