onsemi FGH40T100SMD-F155
Manufacturer:
onsemi
Mfr. Part #:
FGH40T100SMD-F155

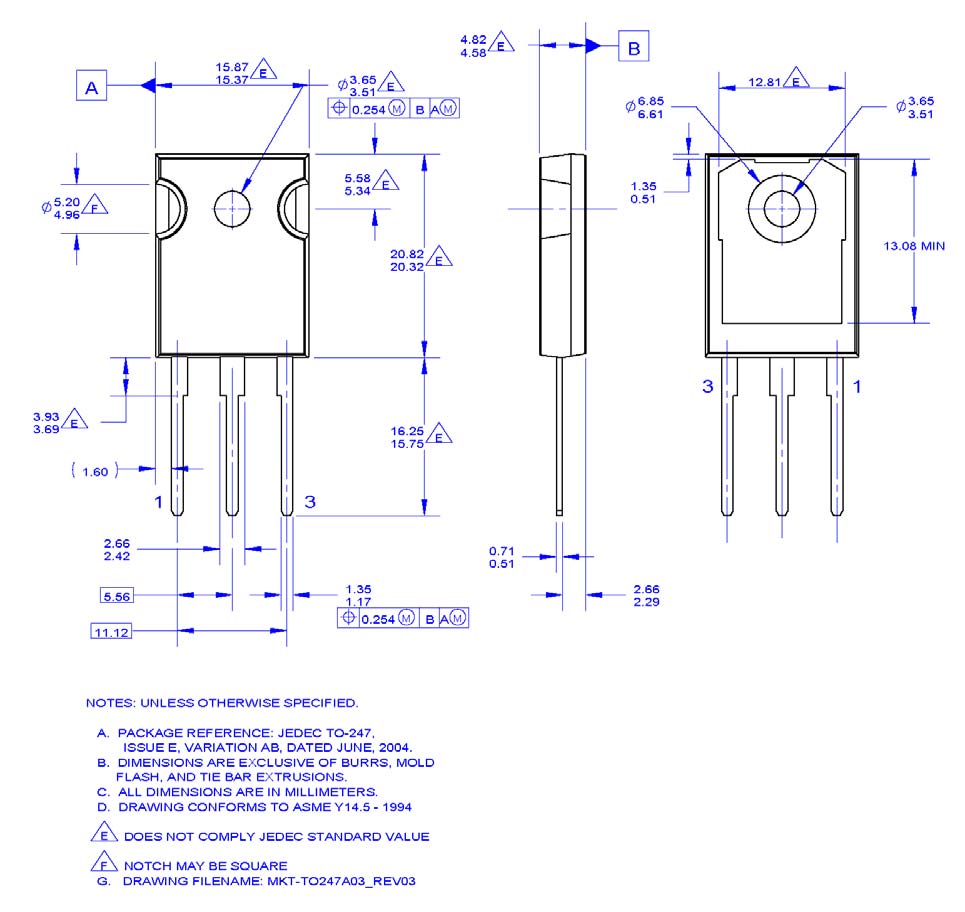

Package:
TO-247-3
Customer #:
Description:
333W 1kV FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
onsemi FGH40T100SMD-F155
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
285ns
Pd - Power Dissipation:
333W
Td(on):
29ns
Collector-Emitter Breakdown Voltage (Vces):
1kV
Input Capacitance(Cies):
-
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
398nC
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
78ns
Switching Energy(Eoff):
1.15mJ
Turn-On Energy (Eon):
2.35mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 450 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
