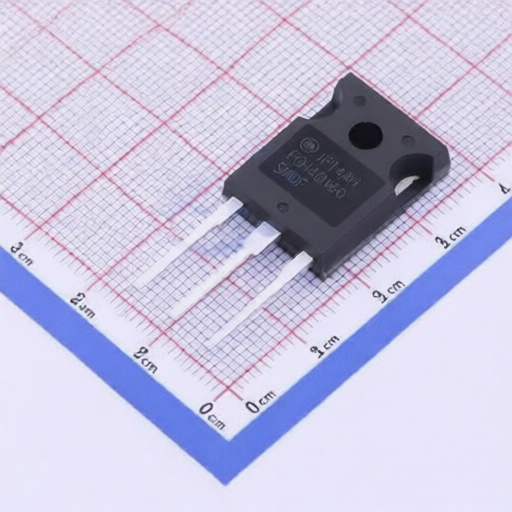

onsemi FGH40N60SMDF
Manufacturer:
onsemi
Mfr. Part #:
FGH40N60SMDF
Package:
TO-247-3
Customer #:
Description:
349W 600V FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
onsemi FGH40N60SMDF
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
92ns
Pd - Power Dissipation:
349W
Td(on):
12ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Input Capacitance(Cies):
-
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
119nC
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
90ns
Switching Energy(Eoff):
260uJ
Turn-On Energy (Eon):
1.3mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
