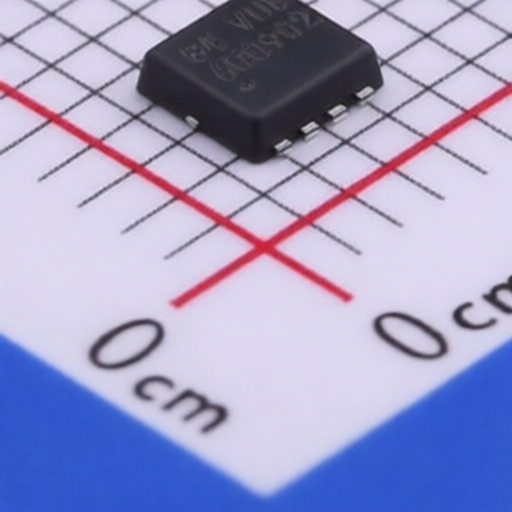

NIKO-SEM PE616BA
Manufacturer:
NIKO-SEM
Asian Brands
Mfr. Part #:
PE616BA
Package:
PDFN-8(3.3x3.3)
Customer #:
Description:
30V 36A 5.4mΩ@10V,12A 1.35V 1 N-channel 16.7W PDFN-8(3.3x3.3) Single FETs, MOSFETs RoHS
Datasheet:
NIKO-SEM PE616BA
Products Specifications
Manufacturer:
Package:
PDFN-8(3.3x3.3)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
36A
Operating Temperature -:
-55℃~+150℃
RDS(on):
5.4mΩ@10V,12A
Gate Threshold Voltage (Vgs(th)):
1.35V
Reverse Transfer Capacitance (Crss@Vds):
96pF@15V
Number:
1 N-channel
Input Capacitance(Ciss):
835pF@15V
Pd - Power Dissipation:
16.7W
Gate Charge(Qg):
9.5nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
NIKO-SEM
64 Products
NIKO SEMICONDUCTOR CO., LTD. (NIKO-SEM) was established in 1998 and headquartered in Taipei, as a premier company of the IC design industry, with focus on the high performance power management components and the analog ICs. NIKO-SEM’s main products include Power MOSFET, linear Regulator, Switching Regulator and Control IC which are widely applied in the main-boards, VGA cards, LCD TVs, LCD Monitors, Power Adapters, Laptop Computers, Telecom & Network Equipments, etc.
