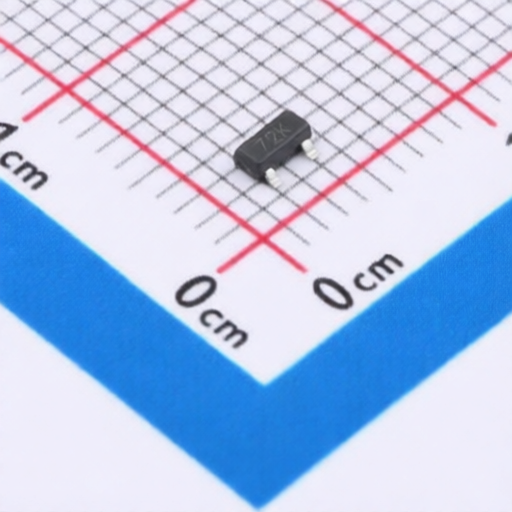

NH 2N7002K
Manufacturer:
NH
Asian Brands
Mfr. Part #:
2N7002K
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 60V 0.34A SOT-23
Description:
N-Channel 60V 0.34A 3.33W Surface Mount SOT-23
Datasheet:
NH 2N7002K
Products Specifications
Manufacturer:
Package:
SOT-23
Configuration:
-
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
340mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
6.7Ω@4.5V
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
2.5pF
Number:
1 N-channel
Output Capacitance(Coss):
4pF
Input Capacitance(Ciss):
27pF
Pd - Power Dissipation:
3.33W
Gate Charge(Qg):
3.7nC@30V
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
NH
591 Products
NH, established in October 2012, focuses on the research, development, production, and sales of diode and bridge rectifier chips and packaging. The company mainly produces diode chips, including general rectifier diodes, fast recovery diodes, high-efficiency diodes, Schottky diodes, Zener diodes, transient voltage suppressor diodes, and bridge rectifiers.
