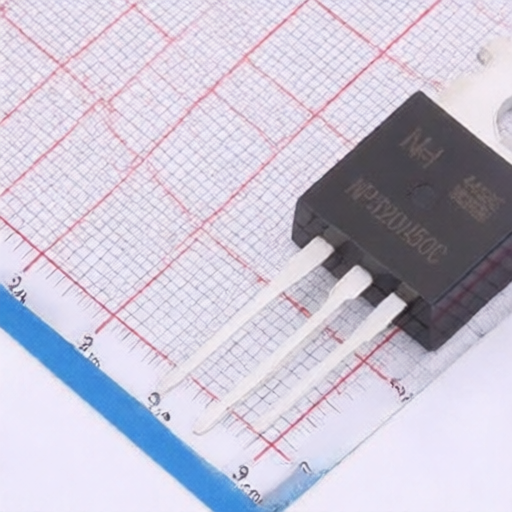

NH NPS20N50C

Name: NH NPS20N50C
Brand: NH

Manufacturer: NH Asian Brands

Mfr. Part #: NPS20N50C

Package: TO-220C

Customer #:

Key Attributes: MOSFET N-CH 500V 20A TO-220C

Description: N-Channel 500V 20A Through Hole TO-220C

Datasheet: NH NPS20N50C

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Package:

TO-220C

Drain to Source Voltage:

500V

Current - Continuous Drain(Id):

20A

Operating Temperature -:

-55℃~+150℃

RDS(on):

240mΩ@10V;310mΩ@4.5V

Gate Threshold Voltage (Vgs(th)):

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

16pF

Number:

1 N-channel

Output Capacitance(Coss):

280pF

Input Capacitance(Ciss):

2.92nF

Pd - Power Dissipation:

260W

Gate Charge(Qg):

52nC

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	50
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

591 Products

Asian Brand

NH, established in October 2012, focuses on the research, development, production, and sales of diode and bridge rectifier chips and packaging. The company mainly produces diode chips, including general rectifier diodes, fast recovery diodes, high-efficiency diodes, Schottky diodes, Zener diodes, transient voltage suppressor diodes, and bridge rectifiers.
