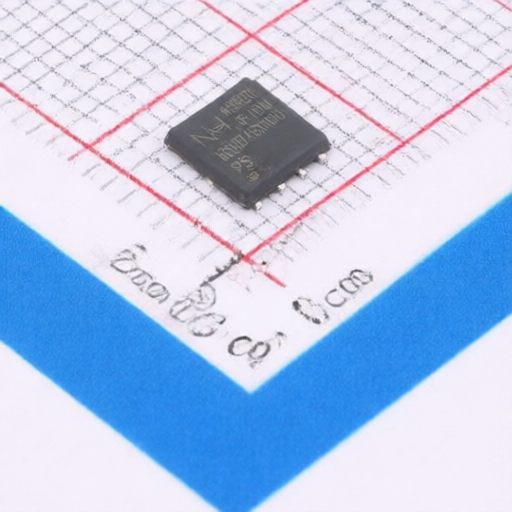

NH NSH045N100P5
Manufacturer:
NH
Asian Brands
Mfr. Part #:
NSH045N100P5
Package:
PDFN5x6-8
Customer #:
Key Attributes:
MOSFET N-CH 100V 120A PDFN5x6-8
Description:
N-Channel 100V 120A 227W Surface Mount PDFN5x6-8
Datasheet:
NH NSH045N100P5
Products Specifications
Manufacturer:
Package:
PDFN5x6-8
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
120A
Operating Temperature -:
-55℃~+150℃
RDS(on):
4.5mΩ@10V,32A
Gate Threshold Voltage (Vgs(th)):
4V
Reverse Transfer Capacitance (Crss@Vds):
33pF@50V
Number:
1 N-channel
Pd - Power Dissipation:
227W
Input Capacitance(Ciss):
6.772nF@50V
Gate Charge(Qg):
90nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
NH
591 Products
NH, established in October 2012, focuses on the research, development, production, and sales of diode and bridge rectifier chips and packaging. The company mainly produces diode chips, including general rectifier diodes, fast recovery diodes, high-efficiency diodes, Schottky diodes, Zener diodes, transient voltage suppressor diodes, and bridge rectifiers.
