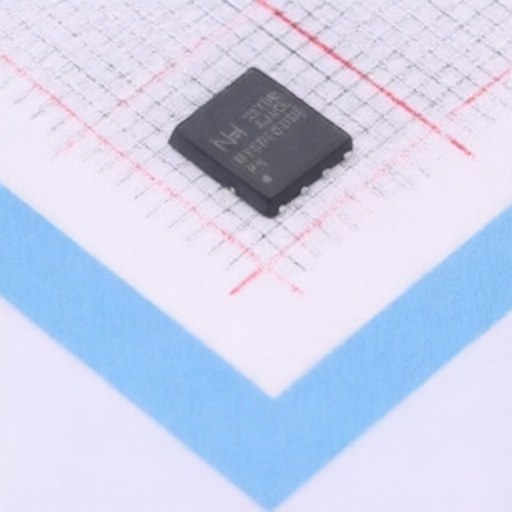

NH NTS036N03P5
Manufacturer:
NH
Asian Brands
Mfr. Part #:
NTS036N03P5
Package:
PDFN5x6-8
Customer #:
Key Attributes:
MOSFET N-CH 30V 120A PDFN5x6-8
Description:
N-Channel 30V 120A 65W Surface Mount PDFN5x6-8
Datasheet:
NH NTS036N03P5
Products Specifications
Manufacturer:
Package:
PDFN5x6-8
Drain to Source Voltage:
30V
Configuration:
-
Current - Continuous Drain(Id):
120A
RDS(on):
4.6mΩ@4.5V
Operating Temperature -:
-55℃~+175℃
Gate Threshold Voltage (Vgs(th)):
2.6V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
265pF
Number:
1 N-channel
Output Capacitance(Coss):
290pF
Pd - Power Dissipation:
65W
Input Capacitance(Ciss):
2.8nF
Gate Charge(Qg):
50nC@15V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
NH
591 Products
NH, established in October 2012, focuses on the research, development, production, and sales of diode and bridge rectifier chips and packaging. The company mainly produces diode chips, including general rectifier diodes, fast recovery diodes, high-efficiency diodes, Schottky diodes, Zener diodes, transient voltage suppressor diodes, and bridge rectifiers.
