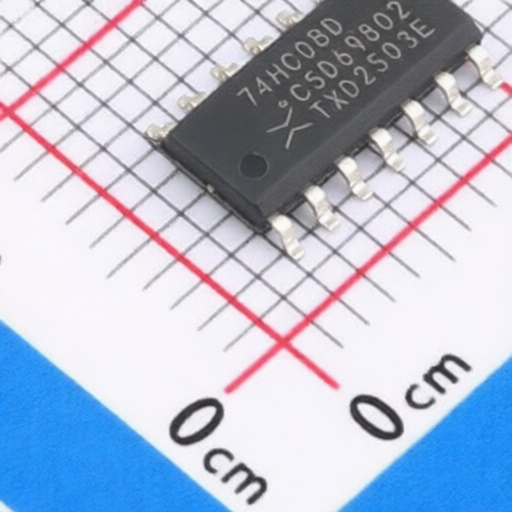

Nexperia 74HC08D,653

Nexperia 74HC08D,653

Name: Nexperia 74HC08D,653
Brand: Nexperia

Manufacturer: Nexperia

Mfr. Part #: 74HC08D,653

Package: SOIC-14

Customer #:

Key Attributes: Quad 2-input AND gate

Description: 27ns@4.5V,50pF 2uA 2V~6V SOIC-14 Gates and Inverters RoHS

Datasheet: Nexperia 74HC08D,653

Products Specifications

Category:

Integrated Circuits (ICs)/Logic/Gates and Inverters

Manufacturer:

Nexperia

Package:

SOIC-14

Input Logic Level - Low:

500mV~1.8V

Logic Family:

74HC Series

Operating Temperature:

-40℃~+125℃

Output Logic Level - Low:

100mV;400mV

Propagation Delay:

27ns@4.5V,50pF

Quiescent Current(Iq):

2uA

Voltage - Supply:

2V~6V

Current - Output High(IOH):

5.2mA

Number of Channels:

4;2

Current - Output Low(IOL):

5.2mA

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8542399000
USHTS	8542390001
TARIC	8542399000
CAHTS	8542390000
BRHTS	85423999
INHTS	85423900
MXHTS	8542.39.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Nexperia

4429 Products

International Brand

Nexperia is a dedicated global leader in discretes, logic and MOSFET devices. Formerly a part of NXP Standard Products, Nexperia is focused on efficiency, producing consistently reliable semiconductor components at high volume. The company’s extensive portfolio meets the stringent standards set by the automotive industry. Industry-leading small packages, produced in Nexperia’s manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels.
