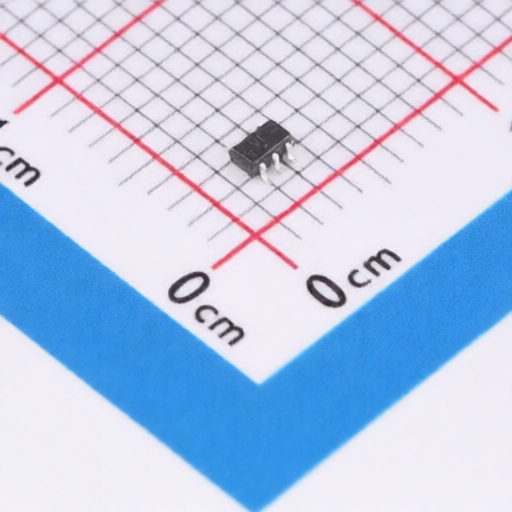

Nexperia 74LVC1G14GW,125

Nexperia 74LVC1G14GW,125

Name: Nexperia 74LVC1G14GW,125
Brand: Nexperia

Manufacturer: Nexperia

Mfr. Part #: 74LVC1G14GW,125

Package: TSSOP-5

Customer #:

Description: Schmitt trigger 6.5ns@5V,50pF 4uA 1.65V~5.5V TSSOP-5 Gates and Inverters RoHS

Datasheet: Nexperia 74LVC1G14GW,125

Products Specifications

Manufacturer:

Nexperia

Package:

TSSOP-5

Input Type:

Schmitt trigger

Logic Family:

74LVC Series

Operating Temperature:

-40℃~+125℃

Output Logic Level - Low:

100mV~800mV

Propagation Delay:

6.5ns@5V,50pF

Quiescent Current(Iq):

4uA

Input Logic Level -Low:

460mV~1.58V

Voltage - Supply:

1.65V~5.5V

Number of Channels:

1;1

Current - Output High(IOH):

32mA

Output Logic Level - High:

2.3V~3.8V

Current - Output Low(IOL):

32mA

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8542399000
USHTS	8542390001
TARIC	8542399000
CAHTS	8542390000
BRHTS	85423999
INHTS	85423900
MXHTS	8542.39.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Nexperia

4429 Products

International Brand

Nexperia is a dedicated global leader in discretes, logic and MOSFET devices. Formerly a part of NXP Standard Products, Nexperia is focused on efficiency, producing consistently reliable semiconductor components at high volume. The company’s extensive portfolio meets the stringent standards set by the automotive industry. Industry-leading small packages, produced in Nexperia’s manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels.
