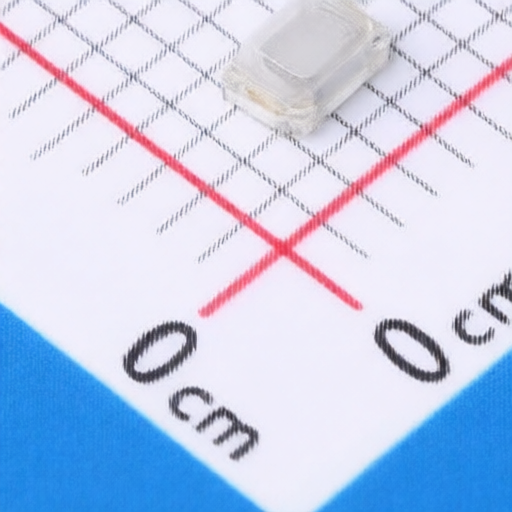

NEWOPTO XYC-IRA3020A65-SX1
Manufacturer:
NEWOPTO
Asian Brands
Mfr. Part #:
XYC-IRA3020A65-SX1
Package:
SMD,3x2mm
Customer #:
Key Attributes:
EMITTER IR 940nm 50mA SMD
Description:
Infrared (IR) Emitter 940nm 1.3V~1.6V 50mA 10mW/sr 70° 17° Surface Mount,3x2mm
Datasheet:
NEWOPTO XYC-IRA3020A65-SX1
Products Specifications
Manufacturer:
Package:
SMD,3x2mm
Radiant Intensity:
10mW/sr
Voltage - DC Reverse(Vr):
5V
Current - DC Forward(If):
50mA
Half wave width:
46nm
Viewing Angle:
70°;17°
Pd - Power Dissipation:
80mW
Voltage - Forward(Vf):
1.3V~1.6V
Operating Temperature:
-40℃~+85℃
Wavelength:
940nm
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 6500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
