NEWOPTO XYC-IRA3020A65-SX4
Manufacturer:
NEWOPTO
Asian Brands
Mfr. Part #:
XYC-IRA3020A65-SX4
Package:
SMD,3x2mm
Customer #:
Key Attributes:
EMITTER IR 940nm 100mA SMD
Description:

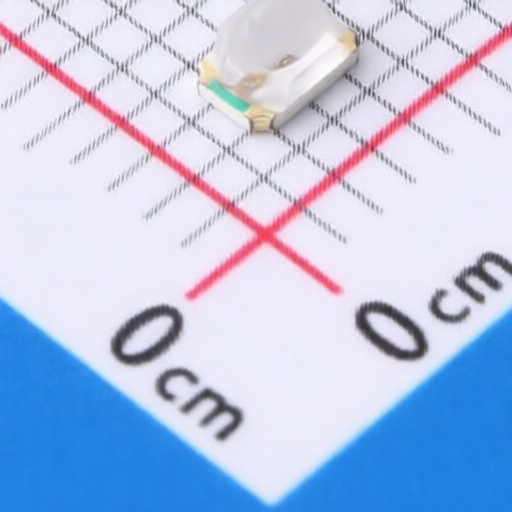

Infrared (IR) Emitter 940nm 1.3V~1.6V 100mA 16mW/sr 75° 22.7° Surface Mount,3x2mm
Datasheet:
NEWOPTO XYC-IRA3020A65-SX4
Products Specifications
Manufacturer:
Package:
SMD,3x2mm
Radiant Intensity:
16mW/sr
Voltage - DC Reverse(Vr):
5V
Current - DC Forward(If):
100mA
Half wave width:
51nm
Viewing Angle:
75°;22.7°
Voltage - Forward(Vf):
1.3V~1.6V
Pd - Power Dissipation:
100mW
Operating Temperature:
-40℃~+85℃
Wavelength:
940nm
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 6500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
NEWOPTO
180 Products
Huizhou Newopto Photoelectric Technology Co., Ltd
(hereinafter referred to as "NEWOPTO") was established in 2008 and is dedicated to the research, development, manufacturing and sales of photosensitive receivers, infrared transmitter receivers and infrared sensor products. The company's main products include photosensitive device series, infrared transmitter tube series, infrared pyroelectric series, infrared thermopile series, etc., which are widely used in lighting, security and smart home fields. NEWOPTO has dozens of national inventions and patented technologies. In pursuit of excellent quality, it provides first-class products and technical support for the development of artificial intelligence.
