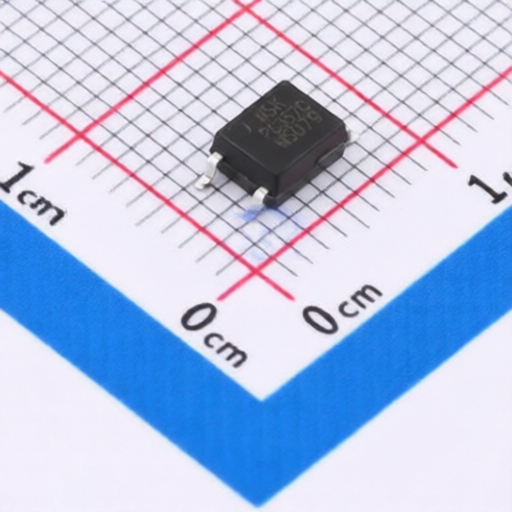

MSKSEMI MPC357C
Manufacturer:
MSKSEMI
Asian Brands
Mfr. Part #:
MPC357C
Package:
SOP-4
Customer #:
Key Attributes:
OPTOISOLATOR 3.75kV 1CH TRANS SOP-4
Description:
Phototransistor Output 3.75kVrms 1 Channel SOP-4
Datasheet:
MSKSEMI MPC357C
Products Specifications
Manufacturer:
Package:
SOP-4
Fall time:
3us
Rise time:
4us
Output Current:
50mA
Vce Saturation(VCE(sat)):
100mV@20mA,1mA
Operating Temperature:
-55℃~+110℃
Load Voltage:
80V
Reverse Voltage:
6V
Current transfer ratio:
200%;400%
Forward Current(If):
50mA
Pd - Power Dissipation:
200mW
Number of Channels:
1
Load Type:
Phototransistor
Input type:
DC
Isolation Voltage(Vrms):
3.75kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
