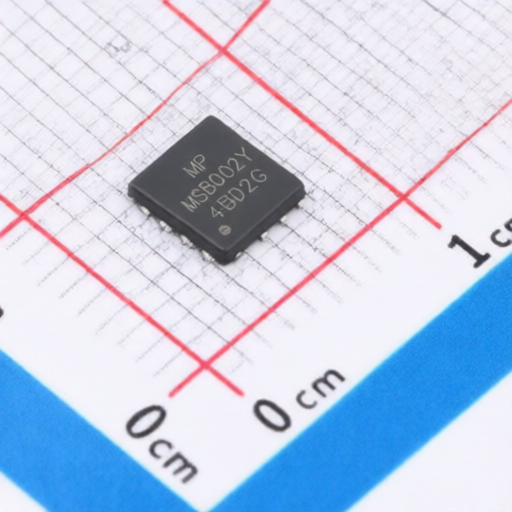

MIRACLE POWER MSB002Y
Manufacturer:
MIRACLE POWER
Asian Brands
Mfr. Part #:
MSB002Y
Package:
PDFN-8L(5x6)
Customer #:
Key Attributes:
MOSFET N-CH 120V 90A PDFN-8L(5x6)
Description:
N-Channel 120V 90A 125W Surface Mount PDFN-8L(5x6)
Datasheet:
MIRACLE POWER MSB002Y
Products Specifications
Manufacturer:
Package:
PDFN-8L(5x6)
Drain to Source Voltage:
120V
Current - Continuous Drain(Id):
90A
RDS(on):
9.5mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
35pF
Input Capacitance(Ciss):
4.619nF
Output Capacitance(Coss):
924pF
Pd - Power Dissipation:
125W
Gate Charge(Qg):
40nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
