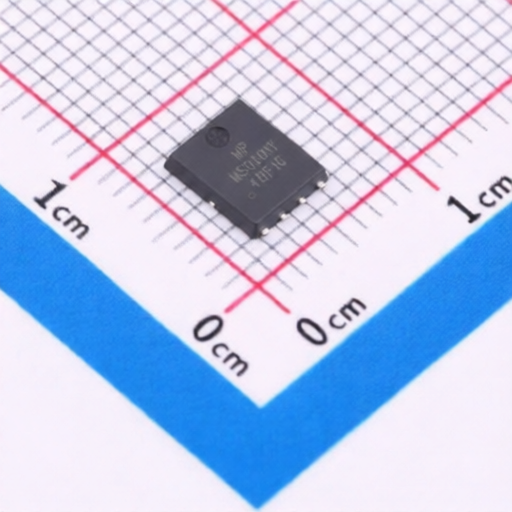

MIRACLE POWER MS0001Y
Manufacturer:
MIRACLE POWER
Asian Brands
Mfr. Part #:
MS0001Y
Package:
PDFN-8(5x6)
Customer #:
Key Attributes:
MOSFET N-CH 100V 109A PDFN-8(5x6)
Description:
N-Channel 100V 109A 125W Surface Mount PDFN-8(5x6)
Datasheet:
MIRACLE POWER MS0001Y
Products Specifications
Manufacturer:
Package:
PDFN-8(5x6)
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
109A
RDS(on):
5.7mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
23pF
Input Capacitance(Ciss):
2.326nF
Output Capacitance(Coss):
1.16nF
Pd - Power Dissipation:
125W
Gate Charge(Qg):
36nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
