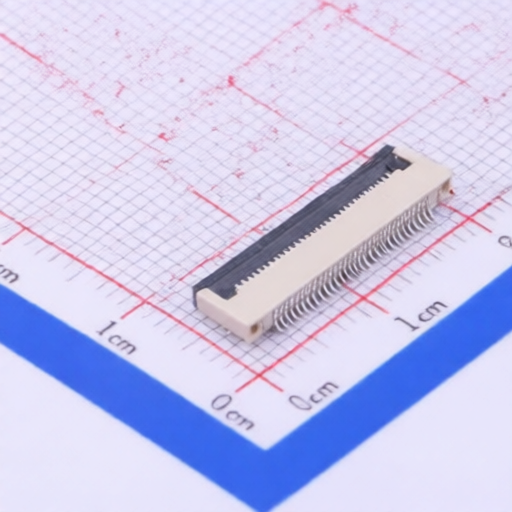

MINTRON XW05200-30
Manufacturer:
MINTRON
Asian Brands
Mfr. Part #:
XW05200-30
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 30POS 0.5mm BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 30 Position 0.5mm Pitch Bottom Contact Surface Mount, Right Angle
Datasheet:
MINTRON XW05200-30
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Operating Temperature:
-25℃~+85℃
Locking Feature:
Hinged Lid
Number of Contacts:
30P
Pitch:
0.5mm
Voltage Rating (Max):
50V
Contact Type:
Bottom Contact
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Plating:
Tin
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MINTRON
828 Products
Shenzhen Mingshuo Technology Co., Ltd.
(hereinafter referred to as "MINTRON") was founded in 1996 and has been focusing on the research and development of high-speed and high-precision connectors. It is a professional connector manufacturer integrating development, production and sales. The company mainly produces various types of connector products, which are widely used in medical, automotive, digital, power, communication, consumer products and other fields to meet the various needs of different types of customers. MINTRON strictly implements the ISO9001 quality system and adopts the most rigorous control from production to finished products. MINTRON uses first-class quality control equipment and combines excellent management technology to ensure the quality of each product.
