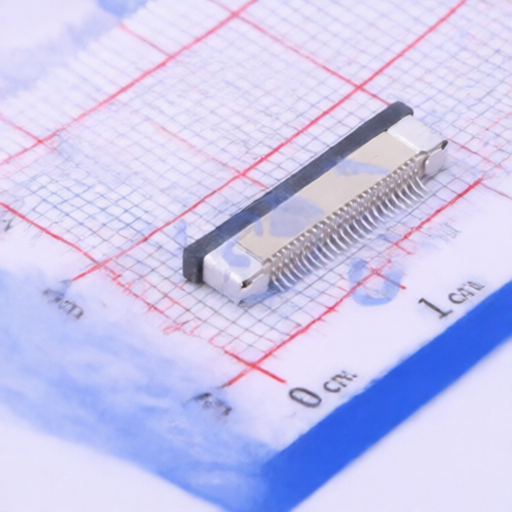

MINTRON LW05202-24
Manufacturer:
MINTRON
Asian Brands
Mfr. Part #:
LW05202-24
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 24POS 0.5mm BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 24 Position 0.5mm Pitch Bottom Contact Surface Mount, Right Angle
Datasheet:
MINTRON LW05202-24
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Operating Temperature:
-25℃~+85℃
Locking Feature:
Slide Lock
Number of Contacts:
24P
Pitch:
0.5mm
Voltage Rating (Max):
50V
Contact Type:
Bottom Contact
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
