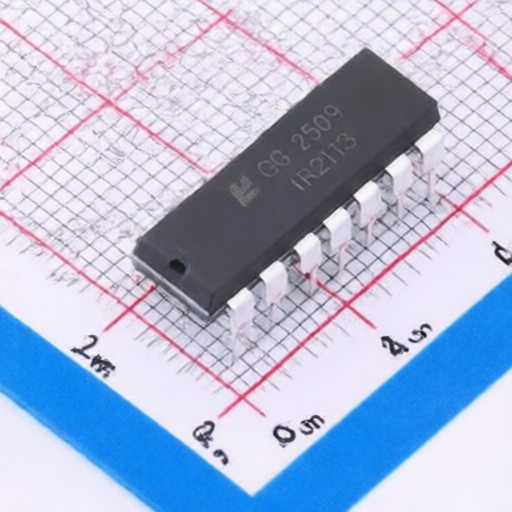

Minos IR2113-MNS
Manufacturer:
Minos
Asian Brands
Mfr. Part #:
IR2113-MNS
Package:
DIP-14
Customer #:
Key Attributes:
Half-bridge power MOSFET/IGBT driver IC
Description:
Half-Bridge Gate Driver IC MOSFET IGBT DIP-14
Datasheet:
Minos IR2113-MNS
Products Specifications
Manufacturer:
Package:
DIP-14
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
130ns
Peak Output Current(Source):
4A
Propagation Delay tpHL:
130ns
Peak Output Current(Sink):
4A
Rise Time:
25ns
Fall Time:
17ns
Features:
Under Voltage Protection
Quiescent Current(Iq):
40uA
Load Type:
MOSFET;IGBT
Input Voltage (Vin):
10V~20V
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Minos
380 Products
Shenzhen Minos Technology Co., Ltd.
(hereinafter referred to as "Minos") was established in 2010. It is a private enterprise focusing on the research and development, production and sales of semiconductor integrated circuits and power devices. The company's main products are VD MOSFET, TRENCH MOSFET, SGT MOSFET and IGBT. These products are widely used in electric vehicles, controllers, converters, LEDs, inverters, lithium battery protection and other fields. Minos has been committed to promoting its own brand "MINOS," casting and packaging in well-known domestic factories, and continuously expanding production lines to ensure stable product quality.
