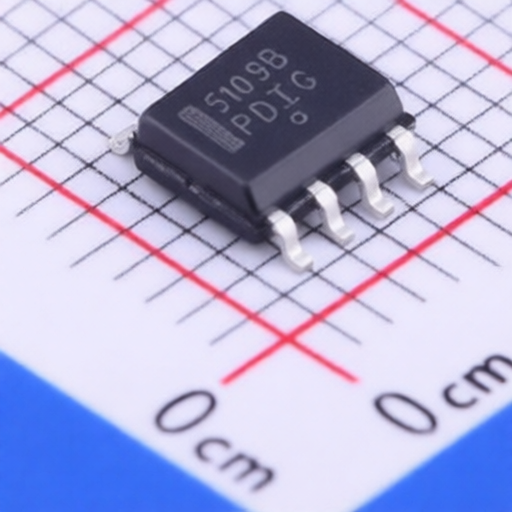

onsemi NCP5109BDR2G
Manufacturer:
onsemi
Mfr. Part #:
NCP5109BDR2G
Package:
SOIC-8
Customer #:
Key Attributes:
High Voltage, High and Low Side Driver
Description:
SOIC-8 Gate Drivers RoHS
Datasheet:
onsemi NCP5109BDR2G
Products Specifications
Manufacturer:
Package:
SOIC-8
Operating Temperature:
-40℃~+150℃
Propagation Delay tpLH:
100ns
Propagation Delay tpHL:
100ns
Peak Output Current(Source):
250mA
Rise Time:
85ns
Peak Output Current(Sink):
500mA
Features:
Under Voltage Protection
Fall Time:
75ns
Load Type:
MOSFET;IGBT
Input Voltage (Vin):
10V~20V
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
