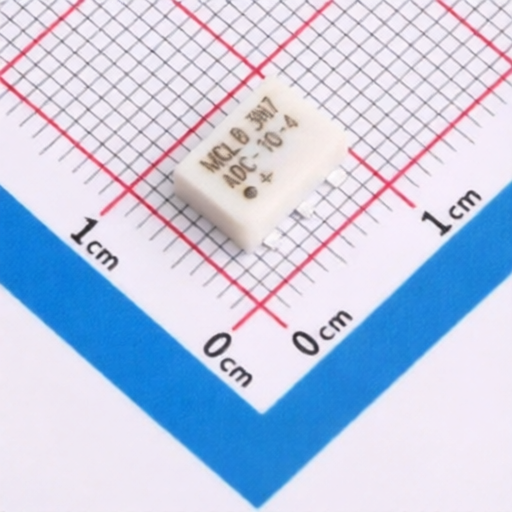

Mini-Circuits ADC-10-4+
Manufacturer:
Mini-Circuits
Mfr. Part #:
ADC-10-4+
Package:
SMD-6P,7.9x5.6mm
Customer #:
Key Attributes:
Surface Mount Directional Coupler 50Ω 5 to 1000 MHz
Description:
1.3dB 20dB 10.5dB 5MHz~1GHz SMD-6P,7.9x5.6mm RF Directional Coupler RoHS
Datasheet:
Mini-Circuits ADC-10-4+
Products Specifications
Category:
Manufacturer:
Package:
SMD-6P,7.9x5.6mm
Insertion Loss:
1.3dB
Return Loss:
20dB
Coupling Factor:
10.5dB
Frequency Range:
5MHz~1GHz
Operating Temperature:
-40℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8517799000 |
| USHTS | 8517790000 |
| TARIC | 8517790000 |
| CAHTS | 8517790000 |
| BRHTS | 85177900 |
| INHTS | 85177990 |
| MXHTS | 8517.70.99 |
