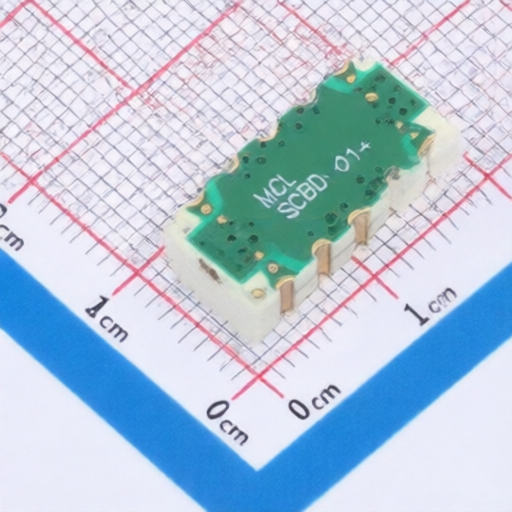

Mini-Circuits SCBD-16-63HP+
Manufacturer:
Mini-Circuits
Mfr. Part #:
SCBD-16-63HP+
Package:
SMD-4P,17.8x8mm
Customer #:
Key Attributes:
DC Pass, High Power Bi-Directional Coupler
Description:
0.4dB 25dB 23dB 50MHz~6GHz SMD-4P,17.8x8mm RF Directional Coupler RoHS
Datasheet:
Mini-Circuits SCBD-16-63HP+
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,17.8x8mm
Insertion Loss:
0.4dB
Return Loss:
25dB
Coupling Factor:
23dB
Frequency Range:
50MHz~6GHz
Operating Temperature:
-55℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8517799000 |
| USHTS | 8517790000 |
| TARIC | 8517790000 |
| CAHTS | 8517790000 |
| BRHTS | 85177900 |
| INHTS | 85177990 |
| MXHTS | 8517.70.99 |
