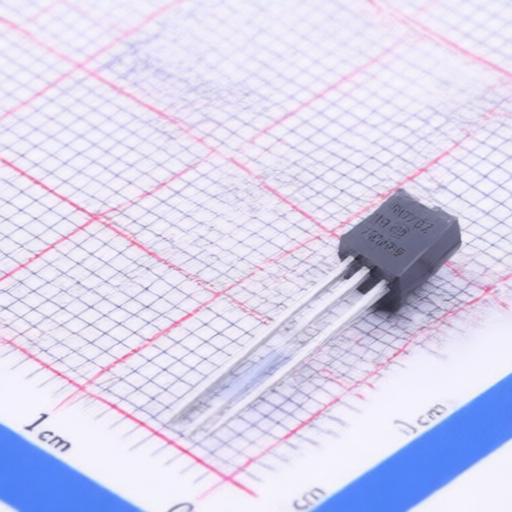

MICROCHIP TN0702N3-G

MICROCHIP TN0702N3-G

Name: MICROCHIP TN0702N3-G
Brand: MICROCHIP

Manufacturer: MICROCHIP

Mfr. Part #: TN0702N3-G

Package: TO-92-3

Customer #:

Description: 20V 530mA 5Ω@2V,50mA 1V@1.0mA 1 N-channel 1W TO-92-3 Single FETs, MOSFETs RoHS

Datasheet: MICROCHIP TN0702N3-G

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MICROCHIP

Package:

TO-92-3

Drain to Source Voltage:

20V

Current - Continuous Drain(Id):

530mA

Operating Temperature -:

RDS(on):

5Ω@2V,50mA

Gate Threshold Voltage (Vgs(th)):

1V@1.0mA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

60pF

Number:

1 N-channel

Output Capacitance(Coss):

200pF

Input Capacitance(Ciss):

500pF

Pd - Power Dissipation:

Gate Charge(Qg):

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
