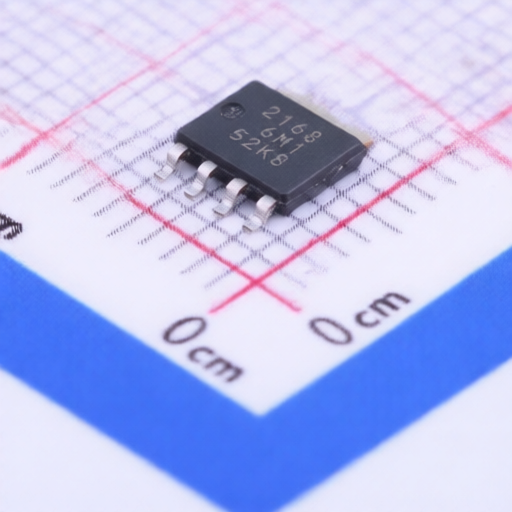

MICROCHIP HAT2168H-EL-E
Manufacturer:
MICROCHIP
Mfr. Part #:
HAT2168H-EL-E
Package:
SOT-669
Customer #:
Description:
30V 30A 13.5mΩ@4.5V,15A 2.5V@1mA 1 N-channel 15W SOT-669 Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP HAT2168H-EL-E
Products Specifications
Manufacturer:
Package:
SOT-669
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
30A
Operating Temperature -:
-
RDS(on):
13.5mΩ@4.5V,15A
Gate Threshold Voltage (Vgs(th)):
2.5V@1mA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
130pF
Number:
1 N-channel
Input Capacitance(Ciss):
1.73nF
Output Capacitance(Coss):
400pF
Pd - Power Dissipation:
15W
Gate Charge(Qg):
11nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
