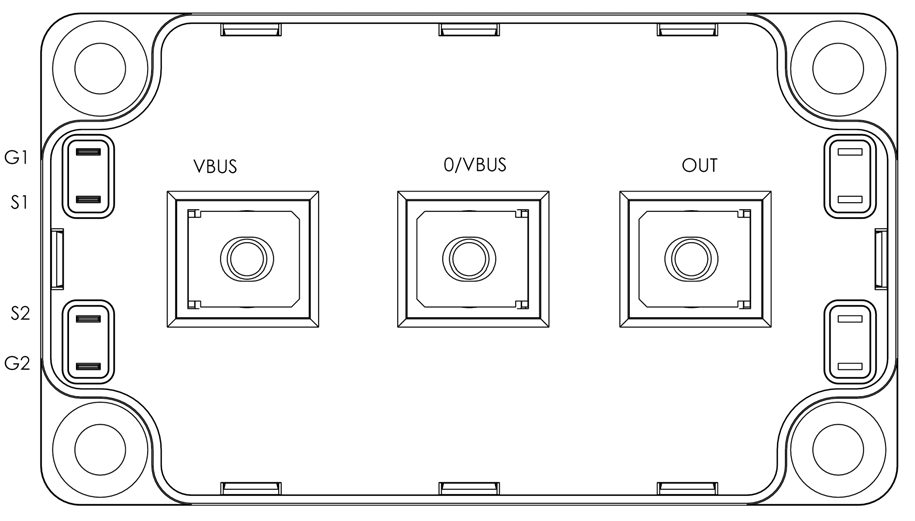

MICROCHIP APTM50AM24SCG
Manufacturer:
MICROCHIP
Mfr. Part #:
APTM50AM24SCG
Package:
-
Customer #:
Description:
500V 150A 28mΩ@10V,75A 5V@6mA Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP APTM50AM24SCG
Products Specifications
Manufacturer:
Package:
-
Configuration:
Half-Bridge
Drain to Source Voltage:
500V
Current - Continuous Drain(Id):
150A
Operating Temperature -:
-40℃~+150℃
RDS(on):
28mΩ@10V,75A
Gate Threshold Voltage (Vgs(th)):
5V@6mA
Type:
-
Reverse Transfer Capacitance (Crss@Vds):
300pF
Number:
-
Output Capacitance(Coss):
4.2nF
Input Capacitance(Ciss):
19.6nF
Pd - Power Dissipation:
-
Gate Charge(Qg):
434nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
