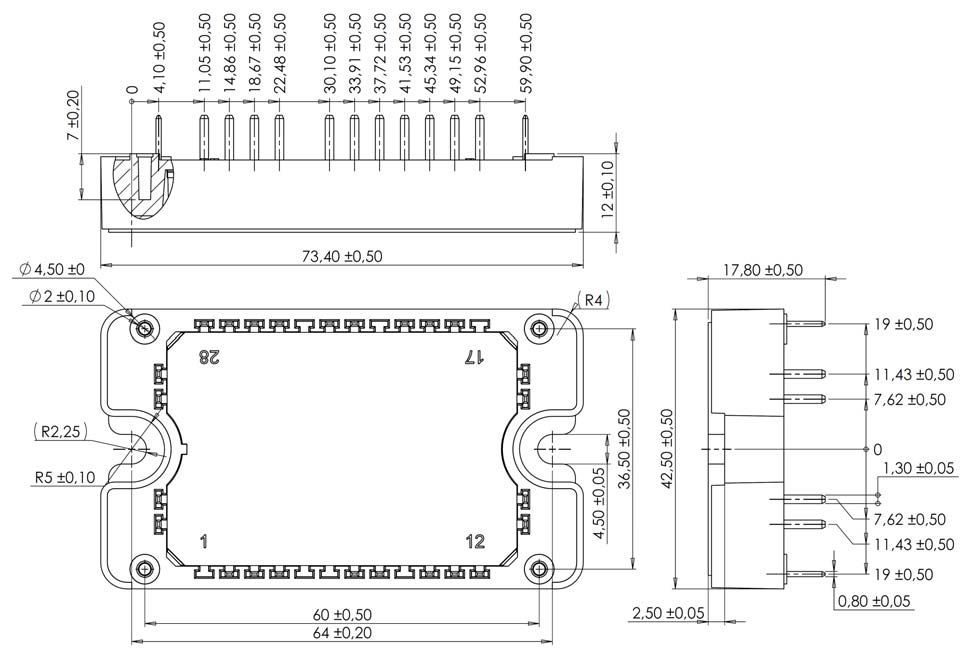

MICROCHIP APTM10HM09FT3G
Manufacturer:
MICROCHIP
Mfr. Part #:
APTM10HM09FT3G
Package:
-
Customer #:
Description:
100V 139A 10mΩ@10V,69.5A 4V@2.5mA 390W Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP APTM10HM09FT3G
Products Specifications
Manufacturer:
Package:
-
Configuration:
Half-Bridge
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
139A
Operating Temperature -:
-40℃~+150℃
RDS(on):
10mΩ@10V,69.5A
Gate Threshold Voltage (Vgs(th)):
4V@2.5mA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
1.47nF
Number:
-
Output Capacitance(Coss):
3.94nF
Input Capacitance(Ciss):
9.875nF
Pd - Power Dissipation:
390W
Gate Charge(Qg):
350nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
