MICROCHIP APTC80TA15PG

MICROCHIP APTC80TA15PG

Name: MICROCHIP APTC80TA15PG
Brand: MICROCHIP

Manufacturer: MICROCHIP

Mfr. Part #: APTC80TA15PG

Package: -

Customer #:

Description: 800V 28A 150mΩ@10V,14A 3.9V@2mA 6 N-Channel 277W Single FETs, MOSFETs RoHS

Datasheet: MICROCHIP APTC80TA15PG

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MICROCHIP

Package:

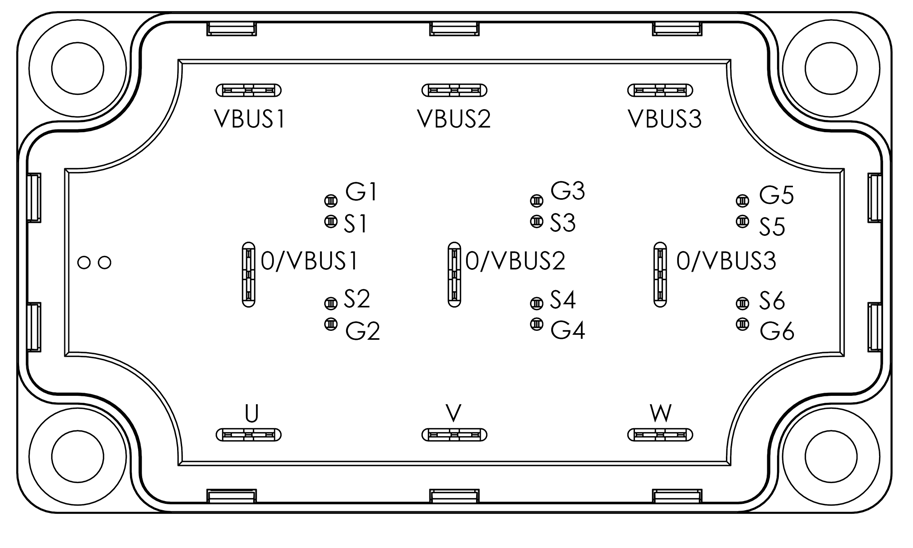

Configuration:

Three-phase bridge

Drain to Source Voltage:

800V

Current - Continuous Drain(Id):

28A

Operating Temperature -:

-40℃~+150℃

RDS(on):

150mΩ@10V,14A

Gate Threshold Voltage (Vgs(th)):

3.9V@2mA

Type:

Reverse Transfer Capacitance (Crss@Vds):

108pF

Number:

6 N-Channel

Output Capacitance(Coss):

2.092nF

Input Capacitance(Ciss):

4.507nF

Pd - Power Dissipation:

277W

Gate Charge(Qg):

180nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
