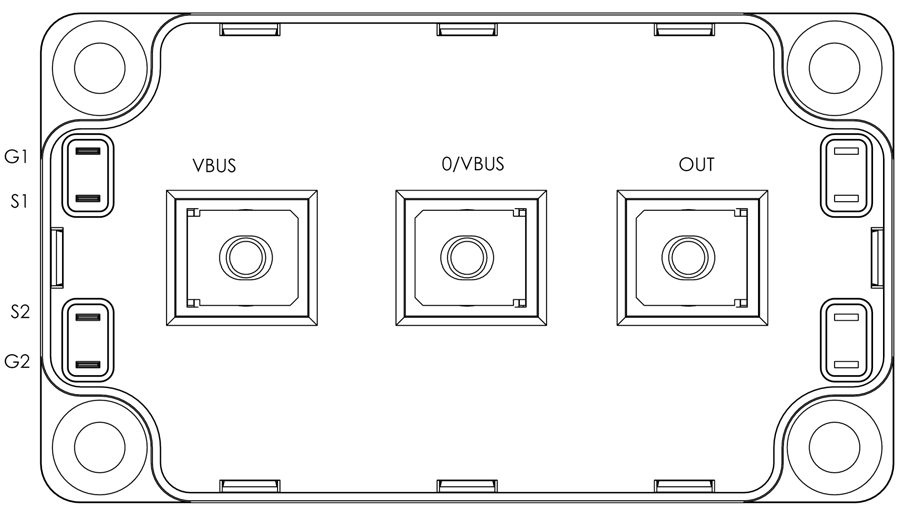

MICROCHIP APTM120A20SG
Manufacturer:
MICROCHIP
Mfr. Part #:
APTM120A20SG
Package:
-
Customer #:
Description:
1.2kV 50A 240mΩ@10V,25A 5V@6mA 2 N-Channel 1.25kW Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP APTM120A20SG
Products Specifications
Manufacturer:
Package:
-
Configuration:
-
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
50A
Operating Temperature -:
-40℃~+150℃
RDS(on):
240mΩ@10V,25A
Gate Threshold Voltage (Vgs(th)):
5V@6mA
Type:
-
Reverse Transfer Capacitance (Crss@Vds):
420pF
Number:
2 N-Channel
Output Capacitance(Coss):
2.2nF
Pd - Power Dissipation:
1.25kW
Input Capacitance(Ciss):
15.2nF
Gate Charge(Qg):
600nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
